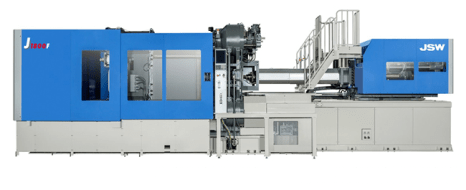

Full Electric Ultra Large Size JSW Machine (Space saving 2 platen type)

Ultra Large Size All Electric Machine 1800 to 3000 ton (Space saving 2 platen type)

Clamping force: from 17,700kN to 29,400kN

A space-saving 2-platen all-electric injection molding machine

The JSW J-F series is an ultra-large all-electric injection molding machine with the shortest machine length in its class, thanks to a 2-platen clamping mechanism. By electrifying every operation except the mold-clamping cylinder, it delivers accurate operation and a significant cycle-time reduction. This compact layout enables thin-wall, precision, faster-cycle molding of very large parts. Servo drives with absolute encoders keep accuracy at 0.01 mm — the level of a CNC machine.

Key benefits

• Shortest machine length in its class from the 2-platen design
• Smaller factory footprint for very high clamping forces
• CNC-level 0.01 mm repeatability from servo drives with absolute encoders
• Up to 60% energy savings compared with hydraulic machines
• No hydraulic oil to store or dispose of
• Significantly reduced cycle times
• Thin-wall, precision molding of large products

Typical applications

The J-F series suits large automotive and structural components, logistics and material-handling products such as pallets and large containers, and big thin-wall technical parts where floor space is limited.

Perotec Systems is the Japan Steel Works partner for Serbia — contact us to fit a J-F machine to your line.
