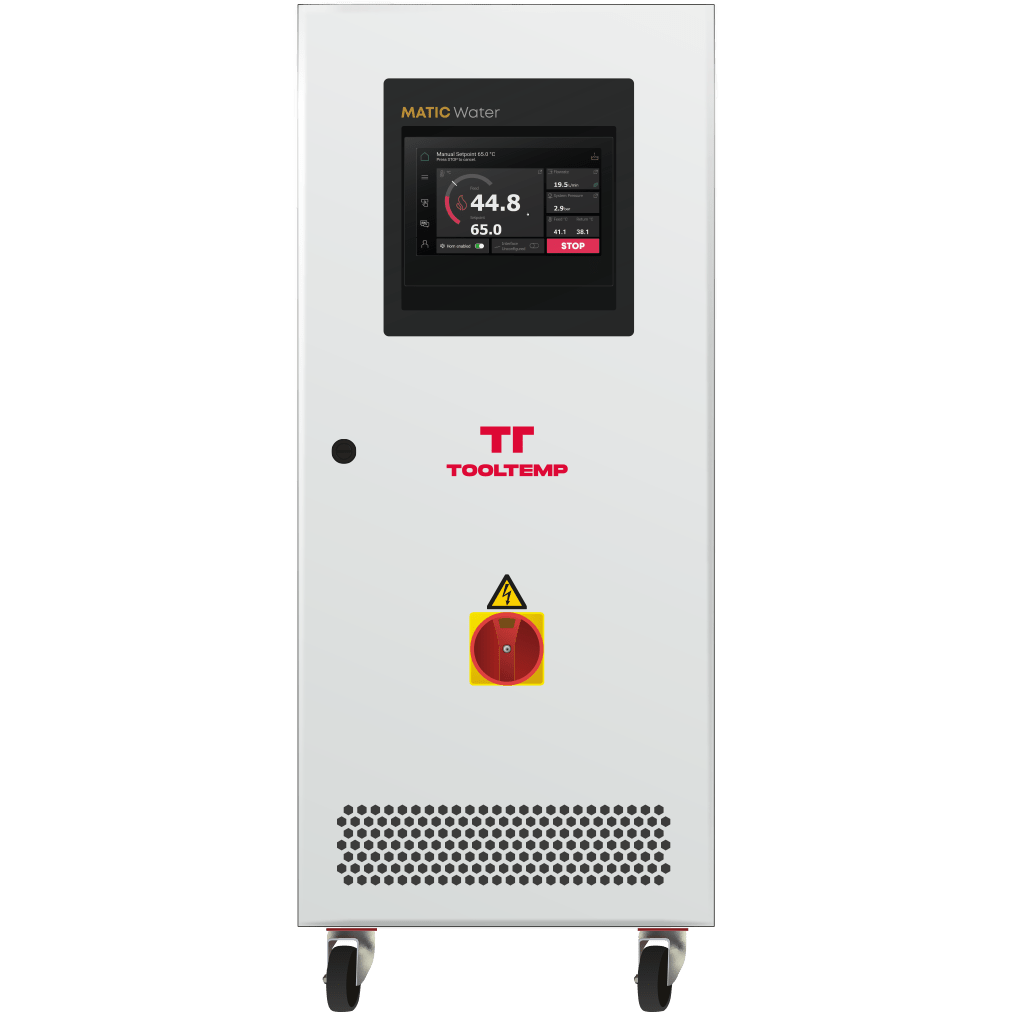

MATIC WATER
Water temperature control units, 18–45 kW standard and pressurized up to 160°C, MATIC WATER 90 and 160
Specifications
| Series | MATIC WATER 90 and 160 |
|---|---|
| Max. temperature | 90°C (standard) / 160°C (pressurized) |
| Heating capacity | 12–45 kW |
| Pump flow | 60–120 l/min |
Details
Water temperature control units MATIC WATER
MATIC WATER units cover standard water circuits up to 90°C and, in the pressurized 160 series, closed-loop systems up to 160°C for processes that need higher mould temperatures than an open water circuit can reach.
Standard models (90°C)
| Model | Max. temp. | Fill volume | Heating capacity | Pump pressure | Pump flow |
|---|---|---|---|---|---|
| 90 18 E | 90°C | 20 L | 18 kW | 4 bar | 60 l/min |
| 90 18 H | 90°C | 20 L | 18 kW | 7 bar | 60 l/min |
| 90 18 K | 90°C | 40 L | 18 kW | 4.3 bar | 120 l/min |
| 90 27 K | 90°C | 40 L | 27 kW | 4.3 bar | 120 l/min |
| 90 36 K | 90°C | 40 L | 36 kW | 4.3 bar | 120 l/min |
| 90 45 K | 90°C | 40 L | 45 kW | 4.3 bar | 120 l/min |
Pressurized models (160°C, closed-loop)
| Model | Max. temp. | Heating capacity | Pump pressure | Pump flow |
|---|---|---|---|---|
| 160 12 B | 160°C | 12 kW | 6.5 bar | 75 l/min |
| 160 24 B | 160°C | 24 kW | 6.5 bar | 75 l/min |
Features
- IRIS control system
- Pt100 temperature sensors in feed and return lines
- Heater control by solid-state relays
- Variable-speed pump with automatic eco-mode
- Display of system and flow pressure
- Automatic water filling
- Mould drainage
- Automatic air venting
- Leakstopper device
Robust Mechanical Design
- Submersible pump (tin bronze)
- Powerful cooling system (spiral and plate heat exchanger)
- Scale-free heat exchanger
- Fully immersed heaters made of high-temperature corrosion-free Nickel alloy (Incoloy 800)
- Maintenance-free flow meter
- Fixed stainless-steel pipework
Safety
- Redundant, mechanical temperature limiter
- Pump motor monitored by the variable frequency drive
- Configurable safeguard limits and corresponding reactions
- Configurable audible alarm
Pressurized models (160 series) also add
- Leakstopper device operates in both pressure and vacuum mode
- Mould drainage with compressed air
Perotec Systems is the Tool-Temp partner for Serbia — contact us to size the right MATIC WATER model for your mould and process.
